601 Cantilever TV Wall Mount for Large Screens

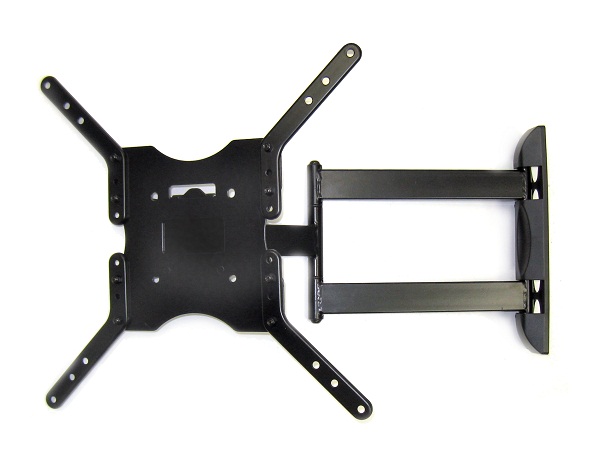

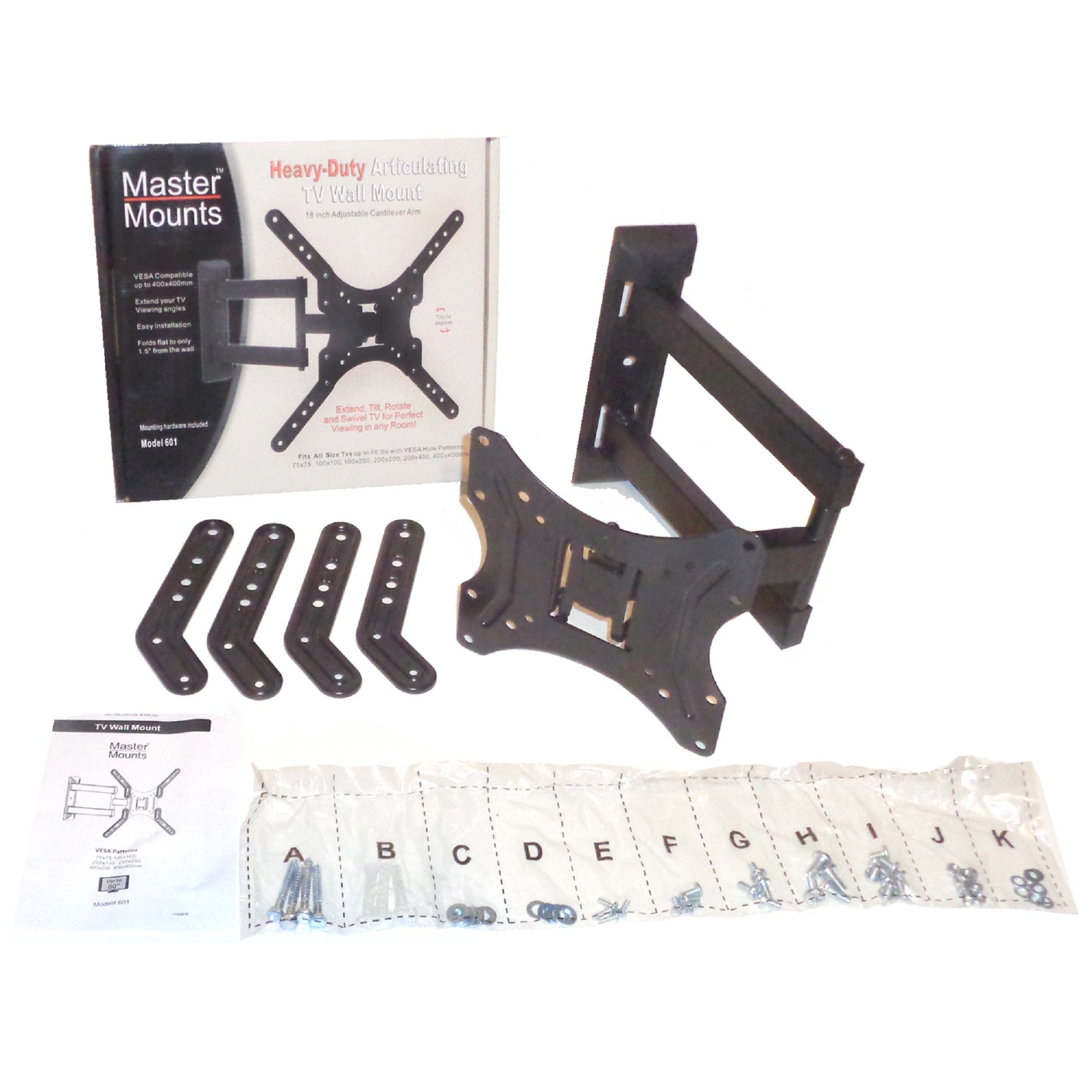

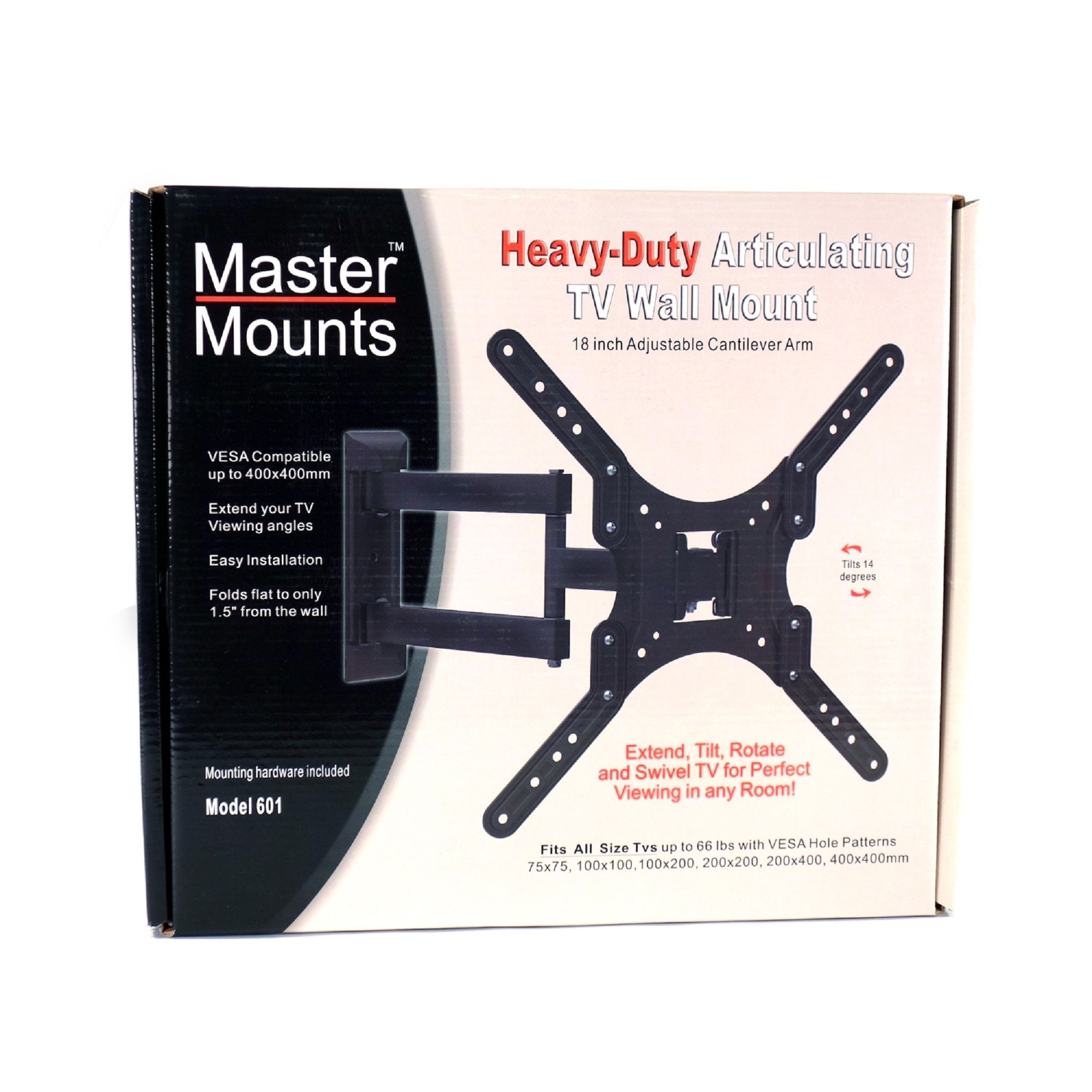

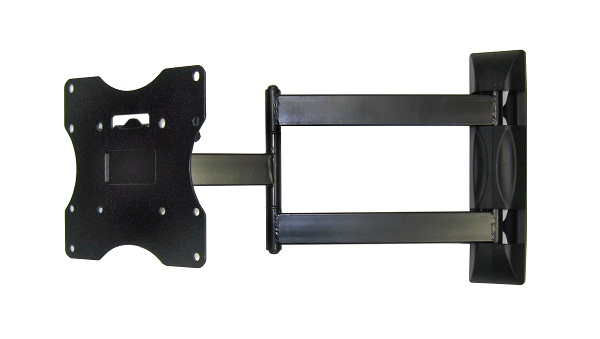

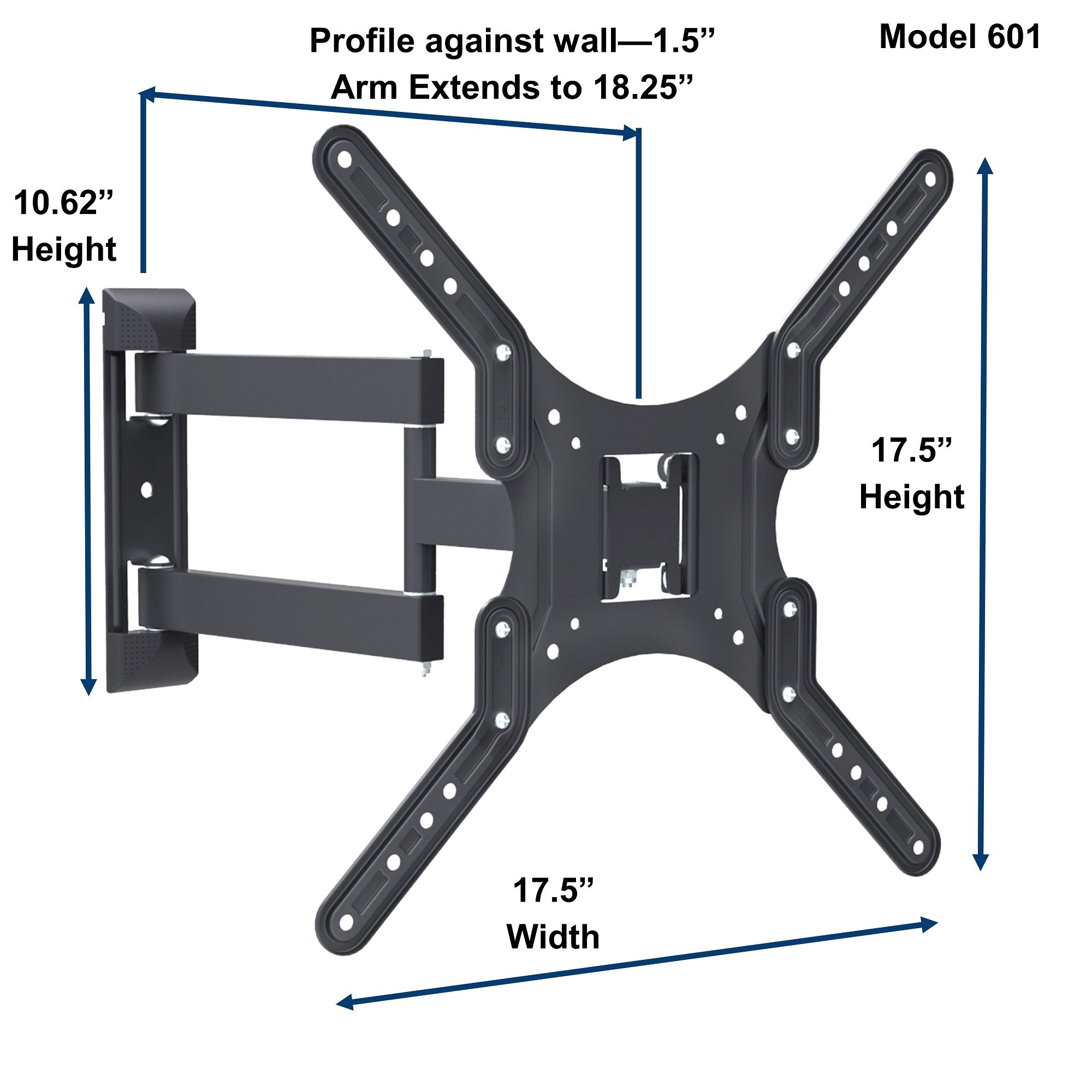

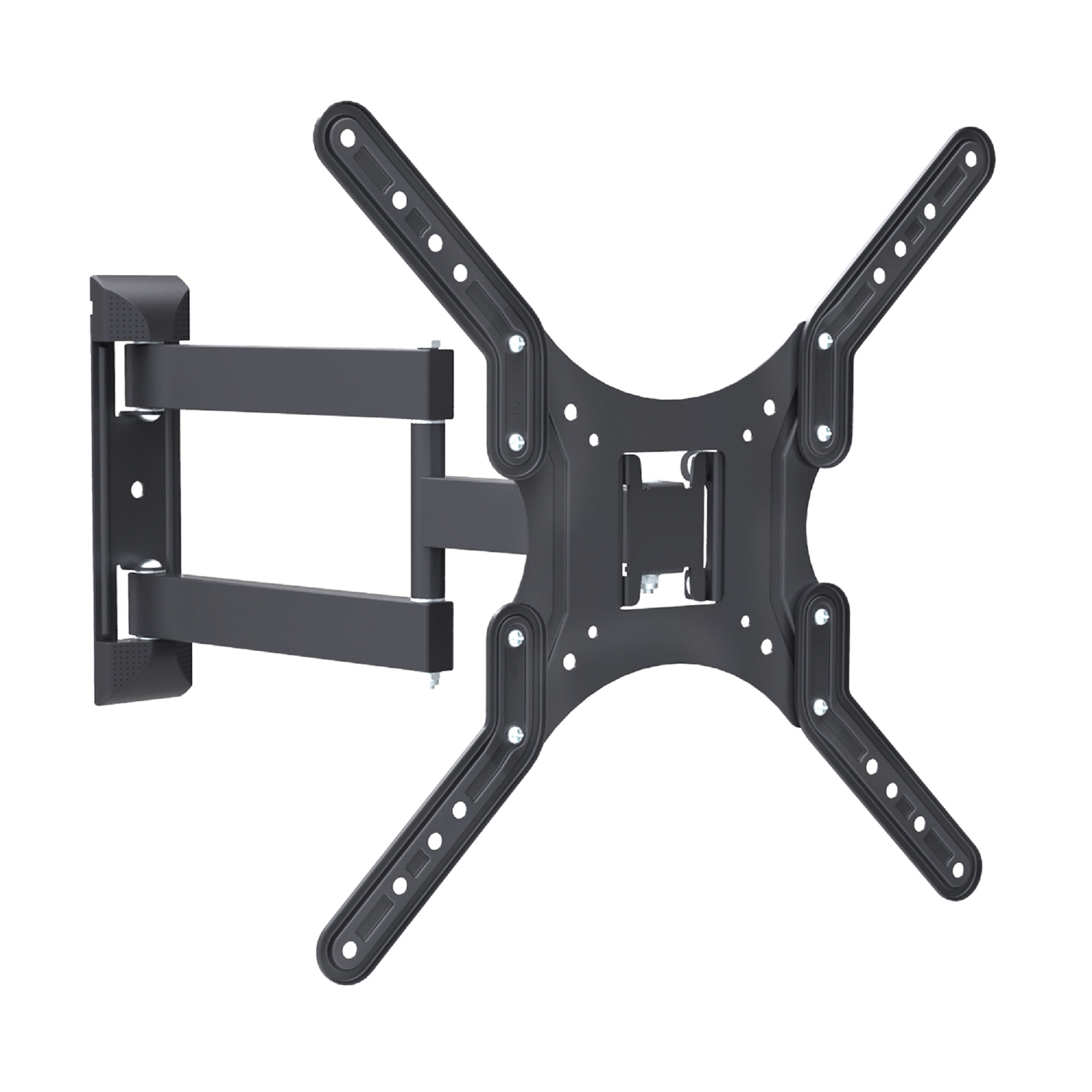

601 Package and PartsProduct DimensionsVESA Patterns up to 400x400 with the included extension armsVESA Patterns up to 200x200 with out the extension armsRetail Package - FrontPackage-BackSpecification Sheet-JPG
Click to enlarge image(s)
Heavy Duty Articulating TV Mount for Screens up to
The 601 mount is made of steel and does the heavy lifting with ease!  The 601 Heavy Duty Cantilever TV Mount  Tilts, Swivels 180 degrees, and Articulates.  It fits TVs up to 60" and holds up to 100 pounds!  Four Extender Arms are included to fit larger Vesa patterns on larger TVs (if needed).  Without the extender arms, it fits VESA patterns 75 x 75, 100 x 100, 100 x 200, 200 x 200.  With the extender arms, it will fit VESA patterns up to: 200 x 400, 300 x 300, 400 x 400.   When fully extended, it reaches 18" from the wall.   It folds back to only 1.75" from the wall.  Comes with base molding to hide the bolts that secure the mount to the wall, giving a nice, finished look.  All Mounting Hardware and User Manual included.

SPECIFICATIONS:

VESA Compatible Mounting Pattern: 75x75, 100x100, 100x200, 200x200,
with VESA extension arms (included) if will fit 200x400, 300x300 and 400x400
Mount Type: Articulating, Cantilever, Swivel, Tilt, Full Motion
Brand: Master Mount

Screen Size: up to 60"
Weight Capacity: up to 80 lbs
Arm Extension: 20" away from wall
Profile when flat: 3" away from the wall

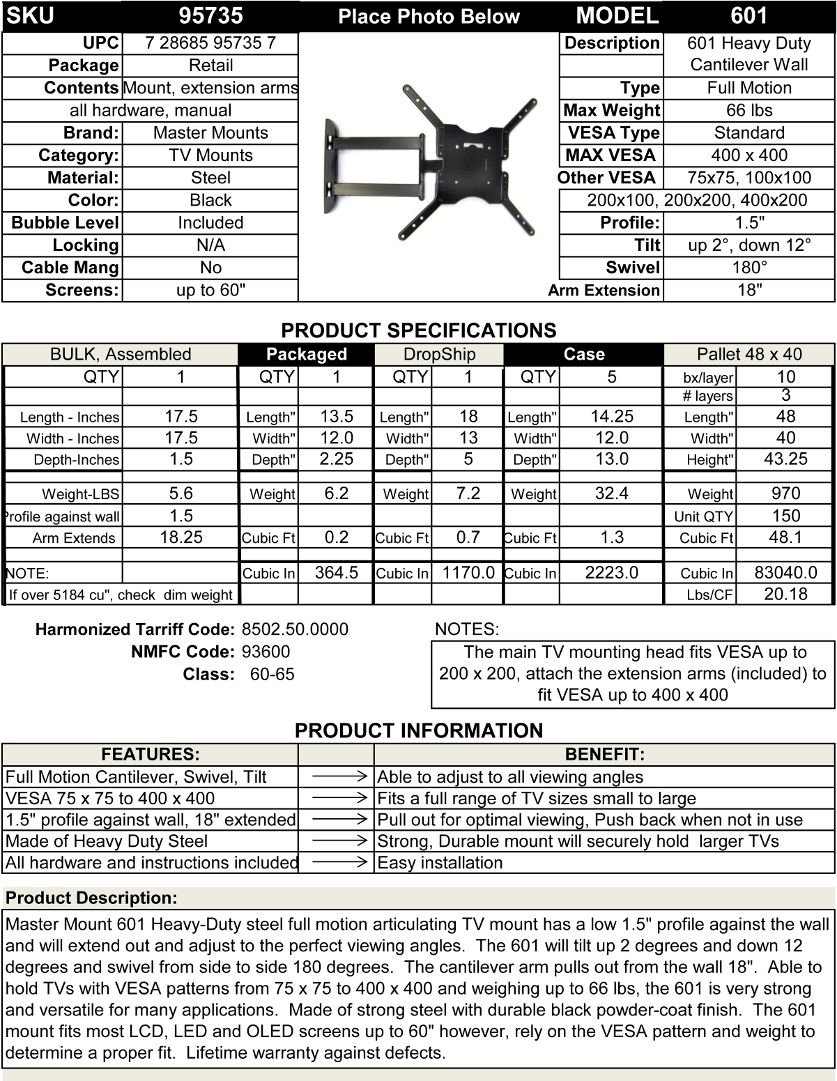

Open Full Specification Sheet

Viewing Adjustments:
left to right 180 degrees
up 2 degrees and down 12 degrees

Material: Heavy Duty Steel
Color: Black
Assembled Dimensions: H 8.5" x W2.5" x D 3", 18.5" when extended
Weight: 10 lbs

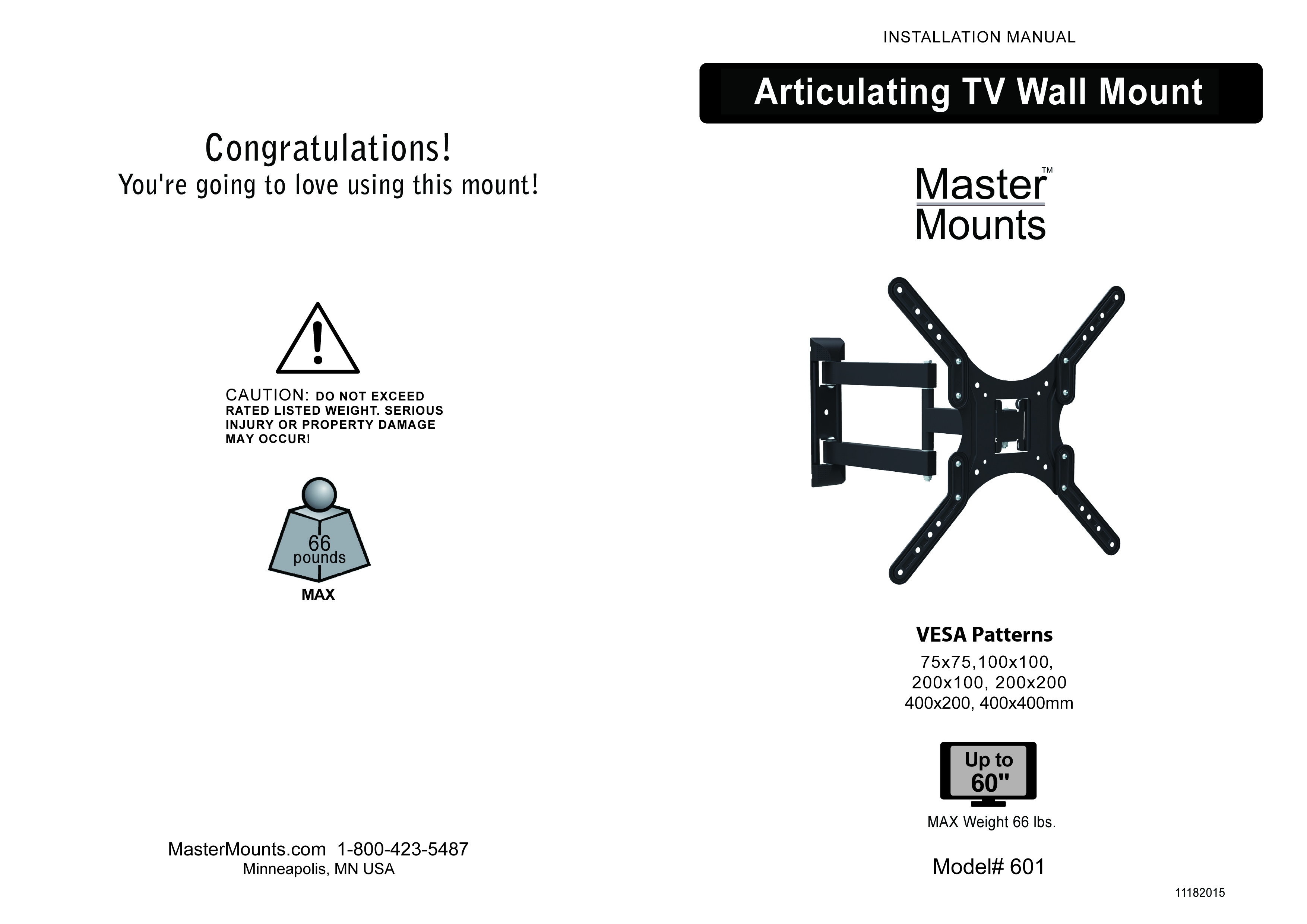

See Installation Manual-Page 1

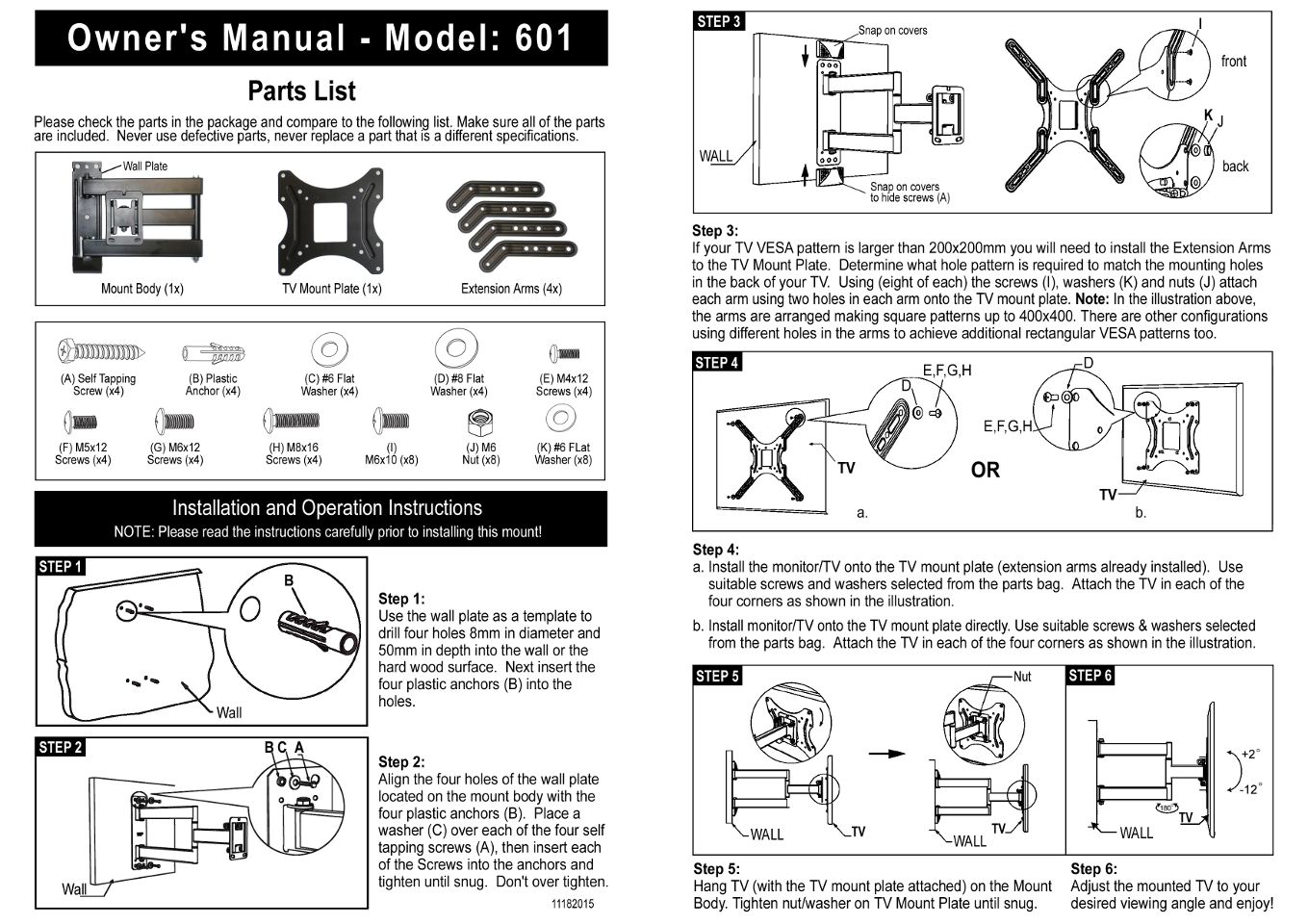

Installation Manual-Page 2

Case Pack - 4 units
Case Weight - 44 lbs

Suggested Retail - $79.95
ADDITIONAL PRODUCT INFORMATION
Specifications
VESA Pattern Sizes 75x75,100x100, 200x200, 100x200, with arms 200x400, 300x300, 400x400
Color Black
Weight Capacity 66 lbs
Arm Extension 18"
Profile when flat against wall 1.75"
Features Benefits
Heavy Duty Steel Strong enough to hold TVs up to 66 lbs
Articulating, Full Motion Mount Trun TV sideways and up/down for perfect viewing angle
Free extension arms included Will fit VESA patterns from 75x75 up to 400x400 and in between!
18" arm extension Pull away from the wall for clear viewing around cabinets and other furniture
